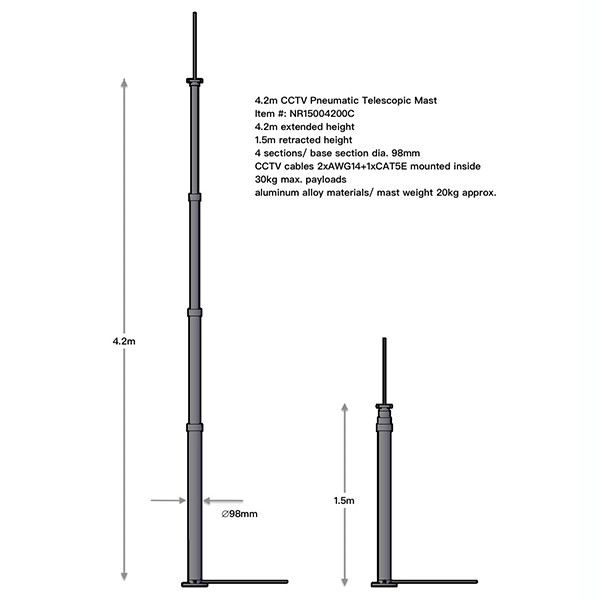

4.2m CCTV pneumatic telescopic mast with inside CCTV cables

This 4.2m CCTV mast is designed for mobile CCTV solution special. Full extended height is 4.2m with 1.5m retracted height. 1.5m retracted height is convinenece for operation, equipments installation. There are CCTV cables mounted inside, which make sure the whole unit are more compact. The mast can support 30 Kg payloads which make sure any suvilalnce equipments can mount the mast top. This mast can be extended by a portable compressor, AC or DC. Maximum working air pressure is 0.2Mpa/29PSI. This mast also have safty protection overpressure valve. And it can be mounted side/back or inside of a vehcile/trailer. This 4.2m mast is non-lockable collar design, which mean the work is automaticlly, automatic extend and retract by an air hand control. Due to the materials is aluminum alloy, the mast is portable but stronger enough for normally application. Guying lines also can be supplied for make the whole system more stronger. If application in remote place and no contionous air supply, the mast can be designed as lockable collar style.

Mast Details speification followed:

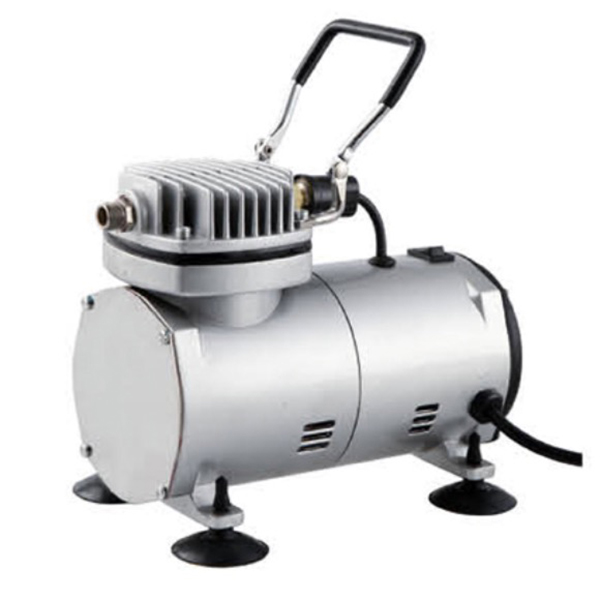

AC electric air compressor:

DC electric air compressor:

Air control:


4.5m, 6m, 9m CCTV masts available as followed:

CCTV Masts 4.5m, 6m, 9m as standard Height Locking and Non-lockable collar available CCTV cables mounted inside Application for mobile CCTV, Security, Surveillance
Part #	Payload	Extended Height	Retracted Height	Mast Weight	Nos. of Sections	Tube Diameter	Collar Type	Maximum Operate Pressure	Internal Cables
CCTV-70603045	100kg/220lb	4.5m/14.8’	1.8m/5.9’	30kg/66lb	3	82~118mm/3.22~4.65”	Non-locking	0.2Mpa/29PSI	1xCAT6 + 2x2.5mm + 10x0.5mm
CCTV-70603060	100kg/220lb	6m/19.7’	2.35m/7.71’	40kg/88lb	3	82~118mm/3.22~4.65”	Non-locking	0.2Mpa/29PSI	1xCAT6 + 2x2.5mm + 10x0.5mm
CCTV-90603045	100kg/220lb	4.5m/14.8’	1.8m/5.9’	35kg/77lb	3	82~118mm/3.22~4.65”	Locking	0.2Mpa/29PSI	1xCAT6 + 2x2.5mm + 10x0.5mm
CCTV-90603060	100kg/220lb	6m/19.7’	2.35m/7.71’	40kg/88lb	3	82~118mm/3.22~4.65”	Non-locking	0.2Mpa/29PSI	1xCAT6 + 2x2.5mm + 10x0.5mm
CCTV-70405090	90kg/198lb	9m/29.5’	2.5m/8.2’	72kg/158lb	5	82~160mm/3.22~6.3"	Non-Locking	0.2Mpa/29PSI	1xCAT6 + 2x1.5 mm
CCTV-70406090	50kg/110lb	9m/29.5’	2.02m/6.6’	72kg/158lb	6	66~160mm/2.6~6.3"	Non-Locking	0.2Mpa/29PSI	1xCAT6 + 2x1.5 mm

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
