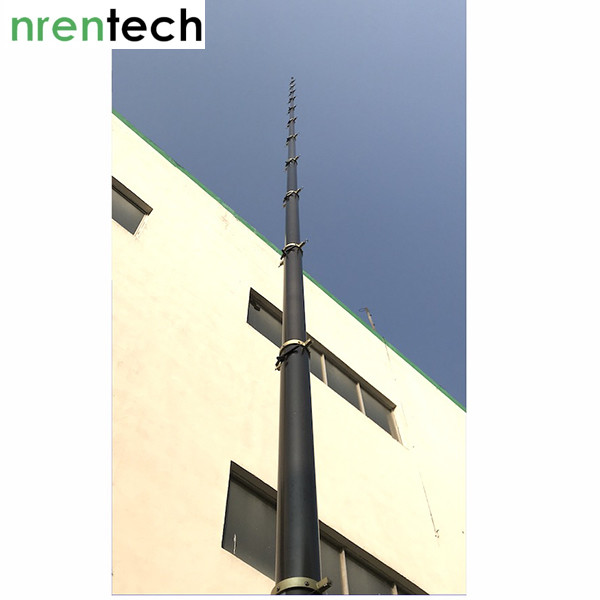

30m Lockable Pneumatic Telescopic Mast 15kg Payloads, 4.4m closed height

Item #: NR-4.4-30-15L-13S-36-279
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Payloads: maximum 15kg@0.25Mpa/36PSI
4> Number of sections: 13 sections
5> Section diameter: 36~279mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 380kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting

Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits for 120km/h, quadpod ground mounting brackets, steel side mounting brackets

Data was updated on 2024-10-11

30m Lockable Pneumatic Telescopic Mast-15kg Payload
NR-4.4-30-15L-13S-36-279

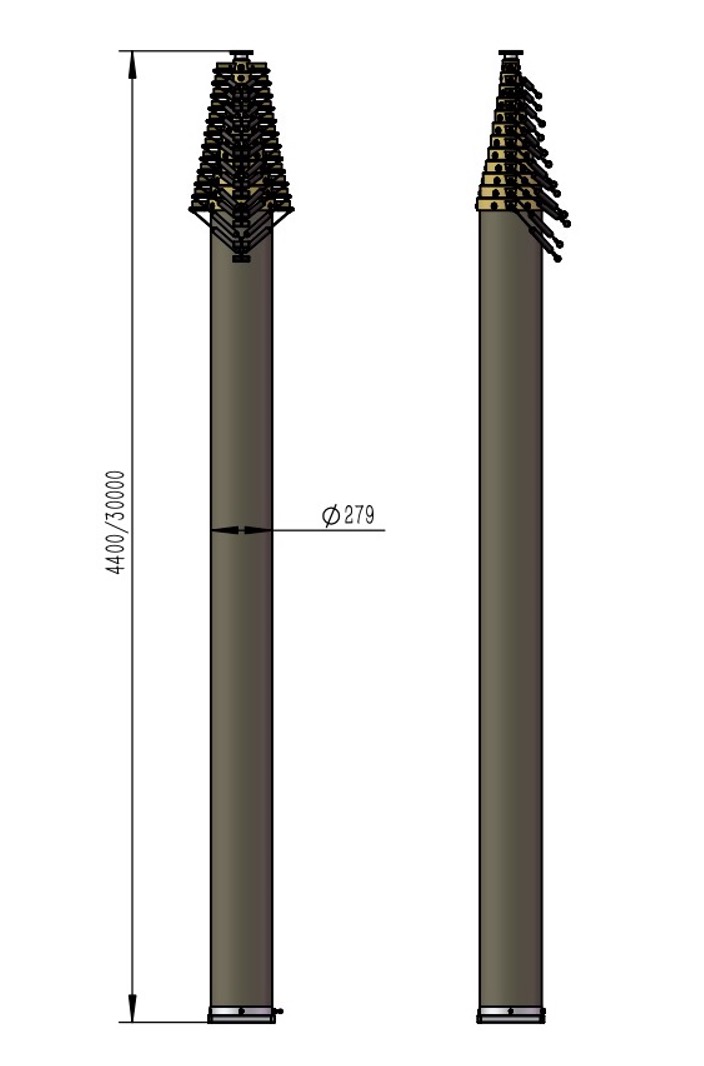

Extended Height	:	30	m	98.4	ft
Retracted Height	:	4.4	m	14.4	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	13
Top section diameter	:	36	mm	1.4	in
Basement section diameter	:	279	mm	11.0	in
Mast Weight	:	380	kg	836	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Optional Accessories	:	Electric air compressor			AC220V/50hz
		Guying Rope Kits			5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m)
		Side Mounting Bracket			Steel Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20241011

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
