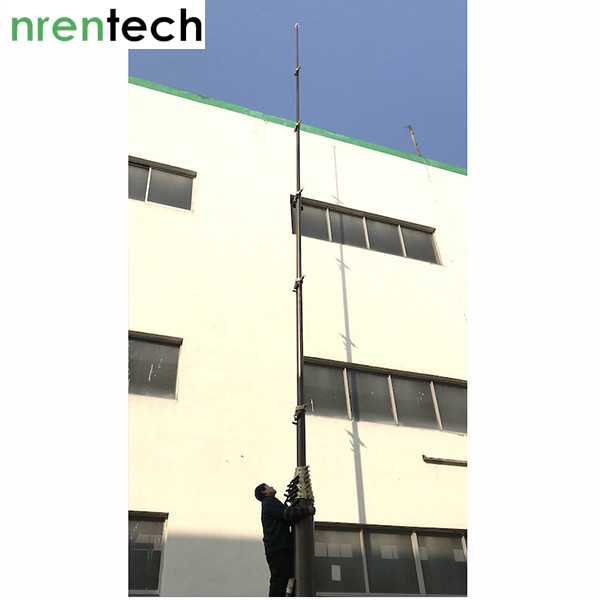

30m Lockable Pneumatic Telescopic Mast 30kg Payloads, 4.4m closed height

Item #: NR-4.4-30-30L-13S-51-316

1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Payloads: maximum 30kg@0.25Mpa/36PSI
4> Number of sections: 13 sections
5> Section diameter: 51-316mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 480kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting

Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits for 120km/h, quadpod ground mounting brackets, steel side mounting brackets

Data was updated on 2024-10-11

30m Lockable Pneumatic Telescopic Mast-30kg Payload
NR-4.4-30-30L-13S-51-316
Extended Height	:	30	m	98.4	ft
Retracted Height	:	4.4	m	14.4	ft
Vertical Payload	:	30	kg	66	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	13
Top section diameter	:	51	mm	2.0	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	480	kg	1056	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Optional Accessories	:	Electric air compressor			AC220V/50hz
		Guying Rope Kits			5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m)
		Side Mounting Bracket			Steel Material
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20231115

PNEUMATIC TELESCOPIC MAST

Pneumatic telescopic mast is a mast which comprised of sections which collapse into each other and is driven by pneumatic/ air. Pneumatic Telescopic Masts are ideal for many applications such as fixed and mobile radio communication, mobile surveillance, elevated testing and mobile radar applications, light towers and other industries.

Nrentech pneumatic masts materials are aluminum alloy 6063T5 finish with 5 mm thickness in average. They are stronger and easy in operation, quick deployment and transportation are the key features of these masts when compared to hydraulic mast, manual mast, electric mast.

DESCRIPTION

• Pneumatic Telescopic Masts are manufactured using heat treated high tensile aluminum alloy part # 6063T5 sections of different diameters from 28mm to 316mm and collapsed into each other. Average thickness of aluminum tubes are 5mm (different model)
• The number of sections vary depending on the extension height, retraction height and head payload. The mast can be erected easily using low pressure air either by a foot pump or air compressor.
• Nrentech Pneumatic telescopic masts come with four styles, standard mast (non-lockable, series N), lockable mast (series L), lighting mast (electric cable mounted inside, series D) and CCTV mast (CCTV cables mounted inside, series C)
• Non-lockable mast can be controlled extend and retract easily by an air controller or air compressor.
• Lockable masts are locked using locking collars which are provided at the top of each section. Operating locking collars is easy through Yoke keys. Once these collars are locked properly, they allow the mast sections to remain in extended position. And compressor can be move off when mast extended fully.
• Lighting mast and CCTV masts are masts with internal spiral cables mounted inside for light tower, CCTV
• A full-length key-ways (2 or 4 ) is provided in each of the section to prevent relative rotation between the sections. In order withstanding heavy wind loads, mast sections are also anchored with guy ropes at different levels.

Features:

• Economical and efficient alternative to conventional towers
• Erection is quick and simple with minimum time
• Light weight, compact and easily transportable
• Withstands wind load greater than 120 km/h
• Installed on ground or mounted on the vehicle
• Durable service life and minimum maintenance
• Masts made of corrosion resistant materials

Application:

• Fixed and Mobile Radio communication
• Conducting geodesic surveying
• handling any emergency work
• Providing temporary illumination
• Jamming unwanted radio signals
• Radio Survey
• Testing wireless cables
• Measuring Field Strength
• mounting lighting arrestors and CCTV cameras
• Remote surveillance
• Measuring Noise Levels
• temporary Flood Lights
• Outdoor communication van.

Product Range and Brief Specs:

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
