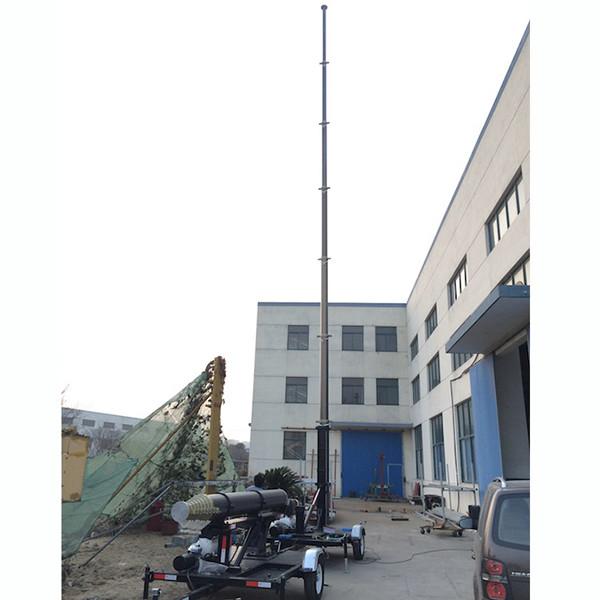

15m Lockable Pneumatic Telescopic Mast for 150kg payloads

Details specification:

1> Item #: NR90107150

2> Extended Height: 15m

3> Retracted Height: 3.2m

4> Payloads: 150kg max.

5> Working pressure: 0.2Mpa/29PSI

6> Working temperature: -25~85℃

7> Sections: 7

8> Sections dia.: 98mm~229mm

9> Materials: Aluminum alloy 6063T5

10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe,

11> Optional accessories: 3x4 guying lines kits, electric air compressor, side mounting brackets

12> Mast weight: 150kg approx.

Other locking masts models:

Pneumatic Telescopic Mast Discription:

PNEUMATIC TELESCOPIC MAST

Pneumatic telescopic mast is a mast comprised of sections which collapse into each other and is driven by pneumatic/ air. Pneumatic Telescopic Masts are ideal for number of applications such as fixed and mobile radio communication, surveillance, elevated testing and mobile radar applications, light towers and other industries.

These masts could be deployed for extended periods and are versatile. Ease in operation, quick deployment and transportation are the key differentiators of these masts when compared to hydraulic mast, manual mast, electric mast.

DESCRIPTION

• Pneumatic Telescopic Masts are manufactured using heat treated high tensile aluminum alloy part # 6063T5 sections of different diameters from 28mm to 316mm and collapsed into each other.
• The number of sections vary depending on the extension height, retraction height and head payload. The mast can be erected easily using low pressure air either by a foot pump or air compressor.
• Nrentech Pneumatic telescopic masts come with four styles, standard mast (non-lockable, series 8), lockable mast(series 9), lighting mast (electric cable mounted inside, series 7) and CCTV mast (CCTV cables mounted inside, series CCTV~)
• Non-lockable mast can be controlled extend and retract easily by an air controller or air compressor.

Non-lockable mast

l Lockable masts are locked using locking collars which are provided at the top of each section. Operating locking collars is easy through Yoke keys. Once these collars are locked properly they allow the mast sections to remain in extended position. And compressor can be move off when mast extended fully.

Lockable Mast

• Lighting mast are masts with internal spiral cables mounted inside for light tower, CCTV

Lighting masts

• A full-length key-way is provided in each of the section to prevent relative rotation between the sections. In order withstanding heavy wind loads, mast sections are also anchored with guy ropes at different levels.

Features:

• Economical and efficient alternative to conventional towers
• Erection is quick and simple with minimum time
• Light weight, compact and easily transportable
• Withstands wind load greater than 120 km/h
• Installed on ground or mounted on the vehicle
• Durable service life and minimum maintenance
• Masts made of corrosion resistant materials

Application:

• Fixed and Mobile Radio communication
• Conducting geodesic surveying
• handling any emergency work
• Providing temporary illumination
• Jamming unwanted radio signals
• Radio Survey
• Testing wireless cables
• Measuring Field Strength
• mounting lighting arrestors and CCTV cameras
• Remote surveillance
• Measuring Noise Levels
• temporary Flood Lights
• Outdoor communication van.

Product Range and Brief Specs:

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
