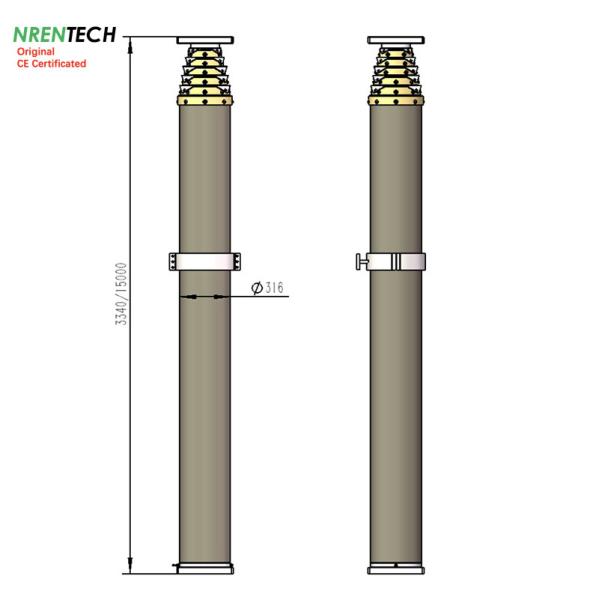

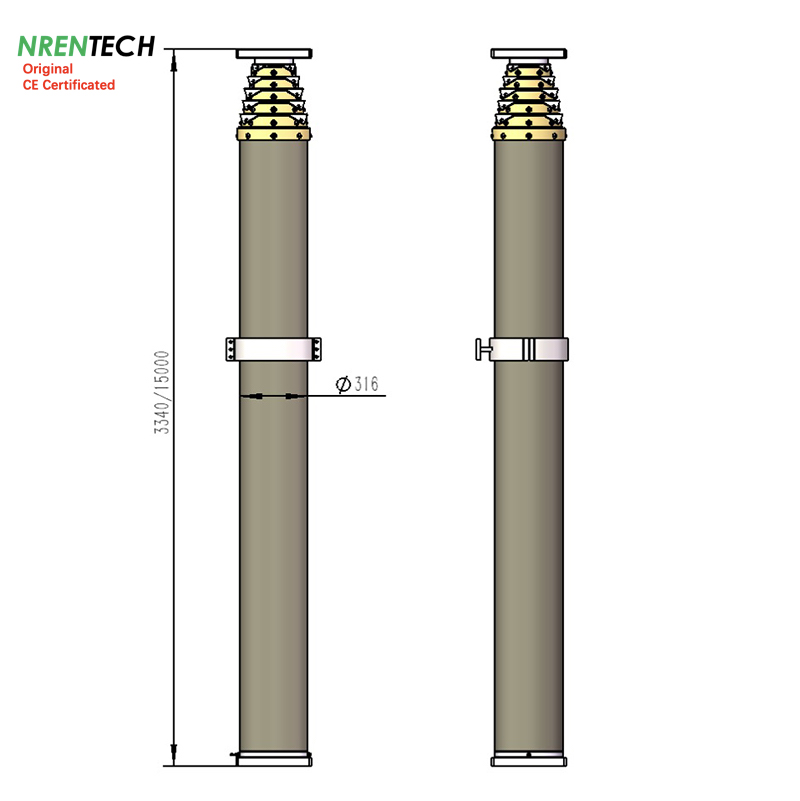

15m Pneumatic Telescopic Mast-400kg Payloads-3.4m closed height

15m Pneumatic Telescopic Mast-400kg payloads
3.4m closed height

---

1> Item #: NR-3.4-15-400N-7S-160-316
2> Extended Height: 15m
3> Retracted height: 3.4m
4> Payloads: 400kg @0.25Mpa/26 PSI
5> Collar type: non-lockable type, suitable for automatic extension /retraction for remote control
6> Working temperature:-15~85 ℃
7> Number of sections: 7 sections
8> Section dia. 140mm~316mm
9> Collar style: non-locking collar
10> Materials: aluminum alloy 6063T5
11> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve panel, 4x4 guying ropes/wires mounting plate.
12> Mast Weight: 380kg approx.

---

Optional accessories:
Electric air compressor
steel side mounting bracket
ground mounting quadpod bracket
remote control kit
guying rope kits with mounting spikes

---

Leading time: 30 days
last updated on 2024-10-15

---

15m Non-Lockable Pneumatic Telescopic Mast-400kg Payload
NR-3.3-15-400N-7S-160-316
Extended Height	:	15	m	49.2	ft
Retracted Height	:	3.4	m	11.2	ft
Vertical Payload	:	400	kg	880	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Non-Locking (Automatic Extention, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	160	mm	6.3	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	378	kg	832	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
Optional Accessories	:	Electric air compressor			AC220~240V/50hz/60Hz
		Guying Rope Kits			4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
		Side Mounting Bracket			Steel Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement
		Remote control kit			DC12V
data update on 20240928

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
