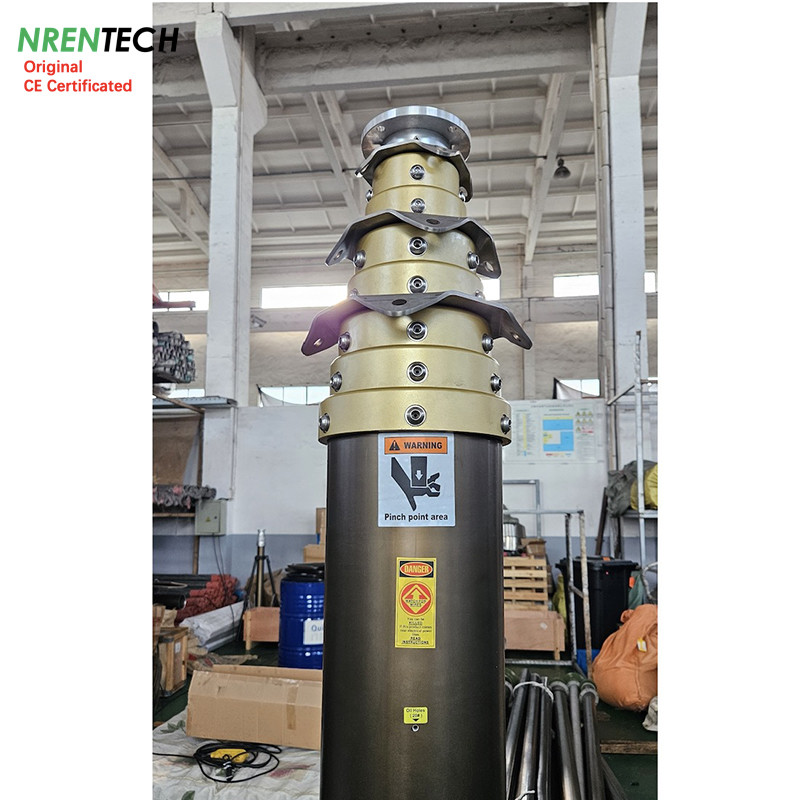

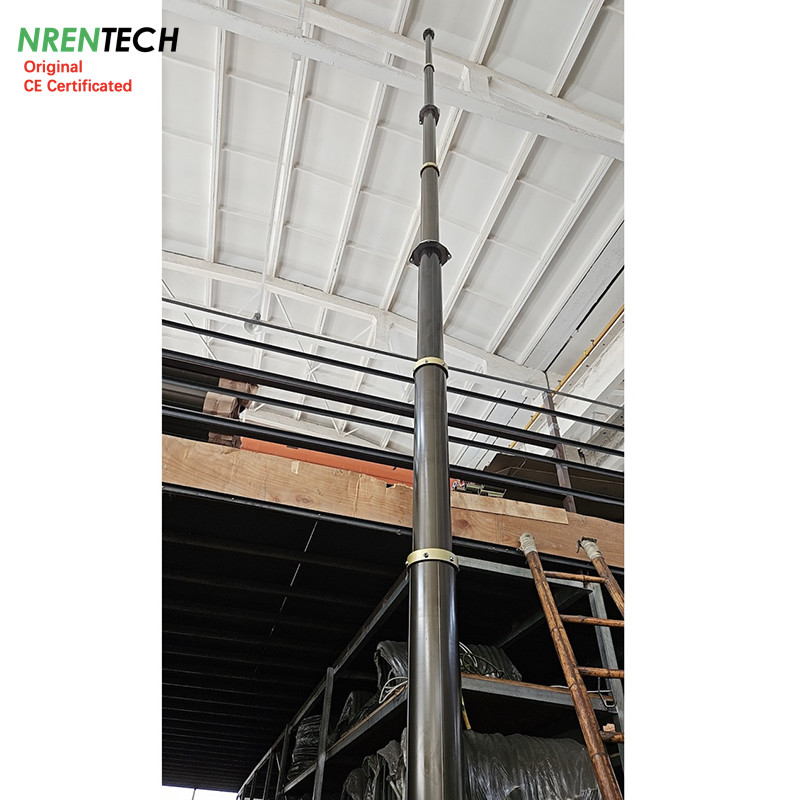

10m pneumatic telescopic mast 70kg payloads-2m closed height-NR-2.0-10-70N-8S-82-229

10m Non-lockable Pneumatic Telescopic Mast 70kg Payloads
2m closed height
NR-2.3-10-30N-7S-51-160

---

10m Pneumatic Telescopic Mast-70kg payloads-2m closed height
Item #: NR-2.0-10-70N-8S-82-229
1> Extended Height: 10m
2> Retracted Height: 2.0m
3> Payloads: 70kg maximum @ 0.2Mpa/29 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 8
6> Section dia. * thickness: 82~229mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 132 kg approx.
9> Working air preesure: 0.2Mpa/29 PSI as maximum recommend
10> Working temperature: -25~55 Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel, 1x side mounting bracket

---

Charging accessories: Ground mounting quadpod, Guying wires kits 2x4,
Electric air compressor DC or AC
remote control kit (DC12V)

leading time: 20 days
data update on 20241022

---

10m Non-Lockable Pneumatic Telescopic Mast-70kg Payload
NR-2.0-10-70N-8S-82-229
Extended Height	:	10	m	32.8	ft
Retracted Height	:	2	m	6.6	ft
Vertical Payload	:	70	kg	154	lb
Working air pressure	:	0.2	Mpa	29	PSI
Collar Type	:	Non-Locking (Automatic Extension, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	8
Top section diameter	:	82	mm	3.2	in
Basement section diameter	:	229	mm	9.0	in
Mast Weight	:	132	kg	290	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Side Mounting Bracket
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			3x4 (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 10m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement
		Remote control kit
data update on 20241022

Huaian Nengren Manufacture and Trade Co.,Ltd.

(NRENTECH)

NRENTECH based in Huaian, Jiangsu Province in China. NRENTECH was set up at April of 2017. Firstly focused on developes and sales on telescopic masts and related products. With more than 3 years business opeation and devopment, Nrentech expend the business scope in telescopic mast lights, solar light tower, CCTV solutions, LED Lights, Hydraulic Units...

Nrentech established number of partners for designing, developing and suppling qualified products in Shanghai, Wuxi, Guangzhou.......

NRENTECH specializes in the development and production of pneumatic telescopic masts and pneumatic telescopic mast light for Mobile Telecommunication, Mobile Security site solution, Mobile Lighting Tower for military and citizens' application......

NRENTECH get many TradeMark in China, NRENTECH, NRENFIRE, NRENRESCURE in different industries.

NRENTECH's main product lines include:
1> Lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
2> Non-lockable Pneumatic Telescopic Mast (30m maximum with 30kg payloads. 400kg at 15m height)
3> CCTV Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
4> Lighting Pneumatic Telescopic Masts (4.5m, 6m, 7.5m, 9m with inside cctv wires)
5> Aluminum Manual Crank Telescopic Masts (8m, 10m, 12m, 15m with 20kg payloads)
6> Electro Mechanical Masts
7> Firefighting Truck Telescopic Mast Light Tower (4m, 4.5m, 6m, 7.5m, 8m, 9m, 10m, 12m with pan tilt lighting fixtures)
8> Roof-top Mounted Telescopic Mast Light (1.8m, 2.8m, 3.8m with pan tilt LED lighting fixtures, 4m, 4.2m, 4.5m with inside electric wires, pan tilt lighting fixtures)
9> Generator Mobile Light Tower (Trading Business)
10> Solar Mobile Light Tower (Trading business)

Even NRENTECH established in the year 2017. but it has more than 10 years manufacture, export and services experience, and have good reputation from customers all over the world, the US customer Tycon System, Canada customer Mr.Gregg's Contracting, Australia customer Mobile Camera Security, India customer Sun Tech, Sun India, Hi-Tech Sevices, First Responders, Germany, Netherland, Malaysia, Indonesia, Thailand, South Africa, Brazil, Chile, Saudi Arabia, UAE, Iran, Russia…
